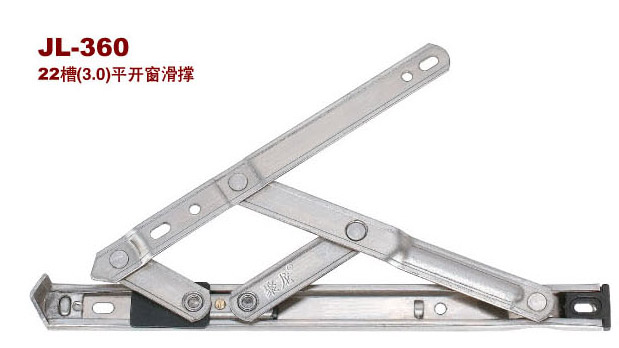

產品名稱：JL-360
產品介紹
|

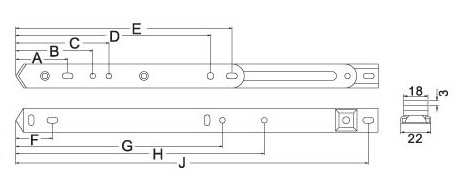

22槽（3.0）平開窗滑撐系列安裝尺寸 單位：mm |
鋁窗規格 | |||||||||||||||
|
規格 |
L |
A |
B |
C |
D |
E |
F |
G |
H |
I |
連桿數 |
規格 |
窗最高 |
窗最寬 |
窗最重 |
開啟角度 |
|
8" |
203 |
37.4 |
58.4 |
145.4 |
158.9 |
36.5 |
|
158.3 |
|
200.6 |
四連 |
8" |
800 |
400 |
15 |
60° |
|
10" |
254 |
38.8 |
59.8 |
189.8 |
203.3 |
36.5 |
48.5 |
195.3 |
|
251.4 |
10" |
1000 |
500 |
23 |
87° | |
|
12" |
304 |
37.4 |
58.4 |
200.4 |
213.9 |
36.5 |
48.5 |
213.3 |
242.3 |
299.7 |
12" |
1000 |
600 |
27 |
87° | |
|
14" |
355 |
38.8 |
86.8 |
226.8 |
240.3 |
36.5 |
48.5 |
234.3 |
263.3 |
343.6 |
14" |
1200 |
700 |
33 |
87° | |
|
16" |
406 |
38.8 |
86.8 |
235.8 |
249.3 |
36.5 |
48.5 |
263.3 |
292.3 |
400.3 |
16" |
1200 |
800 |
37 |
87° | |
|
18" |
457 |
38.8 |
86.8 |
259 |
272.5 |
36.5 |
48.5 |
292.9 |
321.9 |
446 |
18" |
1200 |
900 |
43 |
87° | |
|
20" |
508 |
38.8 |
63.1 |
319.3 |
332.8 |
36.5 |
48.5 |
264.3 |
293.3 |
500.6 |
四連/五連 |
20" |
1500 |
1000 |
47 |
60° |
|
22" |
559 |
38.8 |
63.1 |
329.3 |
342.8 |
36.5 |
48.5 |
292.3 |
321.3 |
551.4 |
22" |
1500 |
1200 |
50 |
60° | |
|
24" |
610 |
38.8 |
63.1 |
339.3 |
352.8 |
36.5 |
48.5 |
292.3 |
321.3 |
602.4 |
24" |
1500 |
1200 |
51 |
60° | |
