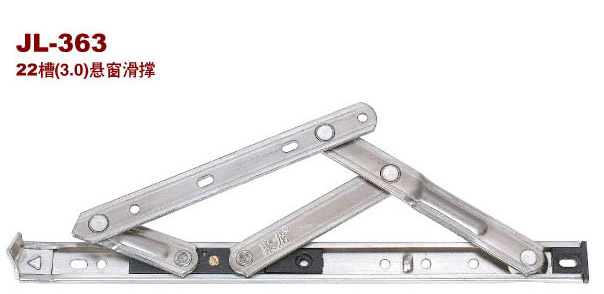

產品名稱：JL-363
產品介紹
|

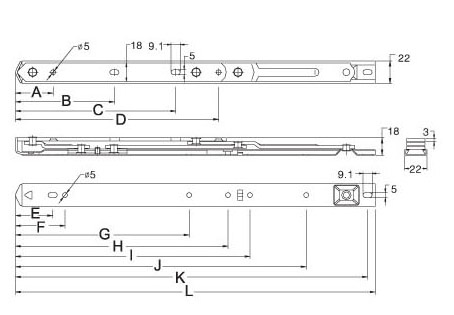

22槽（3.0）平開窗滑撐系列安裝尺寸 單位：mm |
鋁窗規格 | ||||||||||||||||
|
規格 |
L |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
規格 |
窗最高（mm） |
窗最寬（mm） |
窗最重（kg） |
開啟角度 |
|
10" |
254 |
37 |
77 |
107 |
149 |
36.5 |
|
|
|
150.5 |
205.5 |
246.3 |
10" |
400 |
800 |
30 |
30° |
|
12" |
304 |
37 |
77 |
125 |
167 |
36.5 |
48.5 |
160 |
197 |
218.5 |
243.5 |
292.3 |
12" |
500 |
1000 |
40 |
30°/35° |
|
14" |
355 |
37 |
97 |
157 |
199 |
36.5 |
48.5 |
170 |
208 |
229.5 |
284.5 |
344.8 |
14" |
600 |
1000 |
55 |
30°/35° |
|
16" |
406 |
37 |
97 |
198 |
240 |
36.5 |
48.5 |
170 |
209 |
230.5 |
285.5 |
398.3 |
16" |
700 |
1200 |
65 |
25°/30° |
|
18" |
457 |
37 |
97 |
227 |
269 |
36.5 |
48.5 |
190 |
223 |
244.5 |
299.5 |
449.8 |
18" |
800 |
1200 |
90 |
25°/30° |
|
20" |
508 |
37 |
97 |
257 |
299 |
36.5 |
48.5 |
202 |
230 |
251.5 |
306.5 |
500.3 |
20" |
900 |
1200 |
100 |
25°/30° |
|
22" |
559 |
37 |
97 |
287 |
329 |
36.5 |
48.5 |
208 |
240 |
261.5 |
316.5 |
551.3 |
22" |
1000 |
1500 |
105 |
25°/30° |
|
24" |
610 |
37 |
97 |
317 |
359 |
36.5 |
48.5 |
211 |
254 |
275.5 |
330.5 |
602 |
24" |
1200 |
1500 |
110 |
25°/30° |
|
26" |
660 |
37 |
97 |
337 |
379 |
36.5 |
48.5 |
212 |
247 |
268.5 |
323.5 |
652.3 |
26" |
1200 |
1500 |
110 |
25°/30° |
