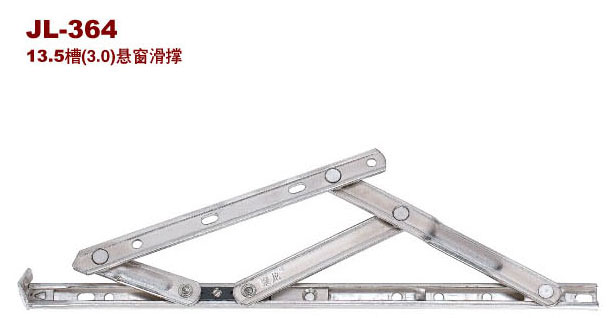

產品名稱：JL-364
產品介紹
|

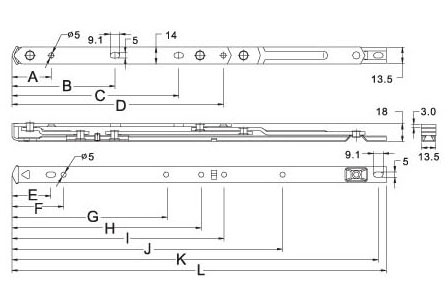

13.5槽（3.0）平開窗滑撐系列安裝尺寸 單位：mm |
鋁窗規格 | ||||||||||||||||
|
規格 |
L |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
規格 |
窗最高（mm） |
窗最寬（mm） |
窗最重（kg） |
開啟角度 |
|
10" |
254 |
37 |
77 |
107 |
149 |
34.3 |
|
|
126.8 |
148.3 |
203.3 |
246.3 |
10" |
400 |
900 |
35 |
30° |
|
12" |
304 |
37 |
77 |
125 |
167 |
34.3 |
46.3 |
157.8 |
194.8 |
216.3 |
211.3 |
292.3 |
12" |
500 |
900 |
40 |
30°/35° |
|
14" |
355 |
37 |
97 |
157 |
199 |
34.3 |
46.3 |
167.8 |
205.8 |
227.3 |
253.3 |
344.8 |
14" |
600 |
1200 |
45 |
30°/35° |
|
16" |
406 |
37 |
97 |
198 |
240 |
34.3 |
46.3 |
167.8 |
205.8 |
227.3 |
253.3 |
398.3 |
16" |
700 |
1200 |
65 |
25°/30° |
|
18" |
457 |
37 |
97 |
227 |
269 |
34.3 |
46.3 |
187.8 |
220.8 |
242.3 |
267.3 |
449.8 |
18" |
800 |
1200 |
75 |
25°/30° |
|
20" |
508 |
37 |
97 |
257 |
299 |
34.3 |
46.3 |
199.8 |
227.8 |
249.3 |
274.3 |
500.3 |
20" |
900 |
1200 |
80 |
25°/30° |
|
22" |
559 |
37 |
97 |
287 |
329 |
34.3 |
46.3 |
205.8 |
237.8 |
259.3 |
284.3 |
551.3 |
22" |
1000 |
1200 |
80 |
25°/30° |
|
24" |
610 |
37 |
97 |
317 |
359 |
34.3 |
46.3 |
208.8 |
251.8 |
273.3 |
298.3 |
602 |
24" |
1200 |
1200 |
90 |
25°/30° |
|
26" |
660 |
37 |
97 |
337 |
379 |
34.3 |
46.3 |
209.8 |
244.8 |
266.3 |
291.3 |
652.3 |
26" |
1200 |
1200 |
90 |
25°/30° |
